Ceiling Crane
A yacht garage that stores a tender and a jet ski side by side faces a geometry problem that floor space alone cannot solve. Moving one means working around the other — and in a confined garage, that quickly becomes impossible without lifting one clear of the floor.

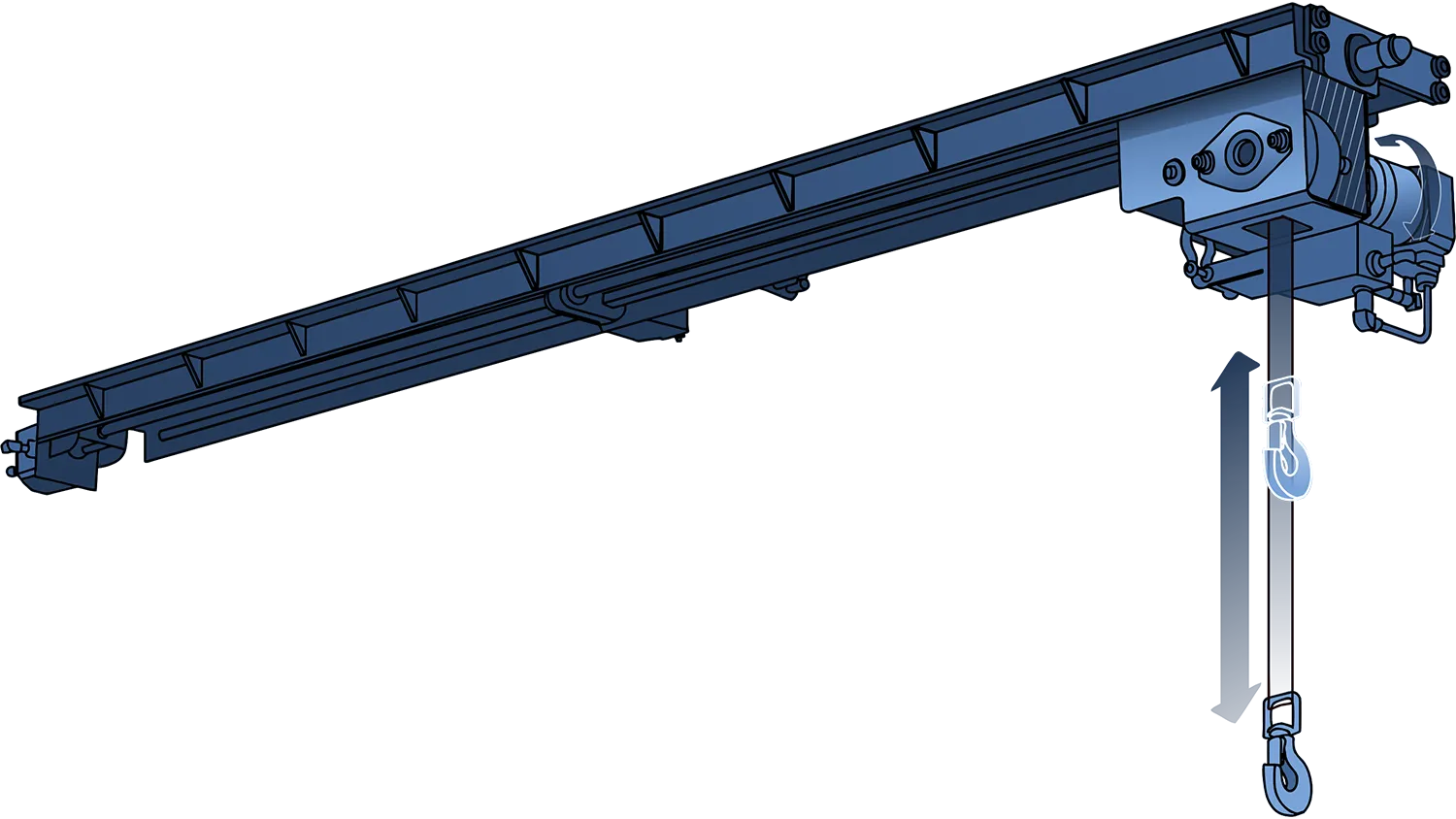

The Ceiling Crane solves this by lifting the load from above. It is a hydraulic overhead crane system mounted to the garage ceiling that lifts equipment vertically and moves it laterally along a rail — clearing the floor and repositioning loads precisely where they need to go. One crane. Full garage control.
Lift equipment clear of the floor and move it side-to-side within the garage.

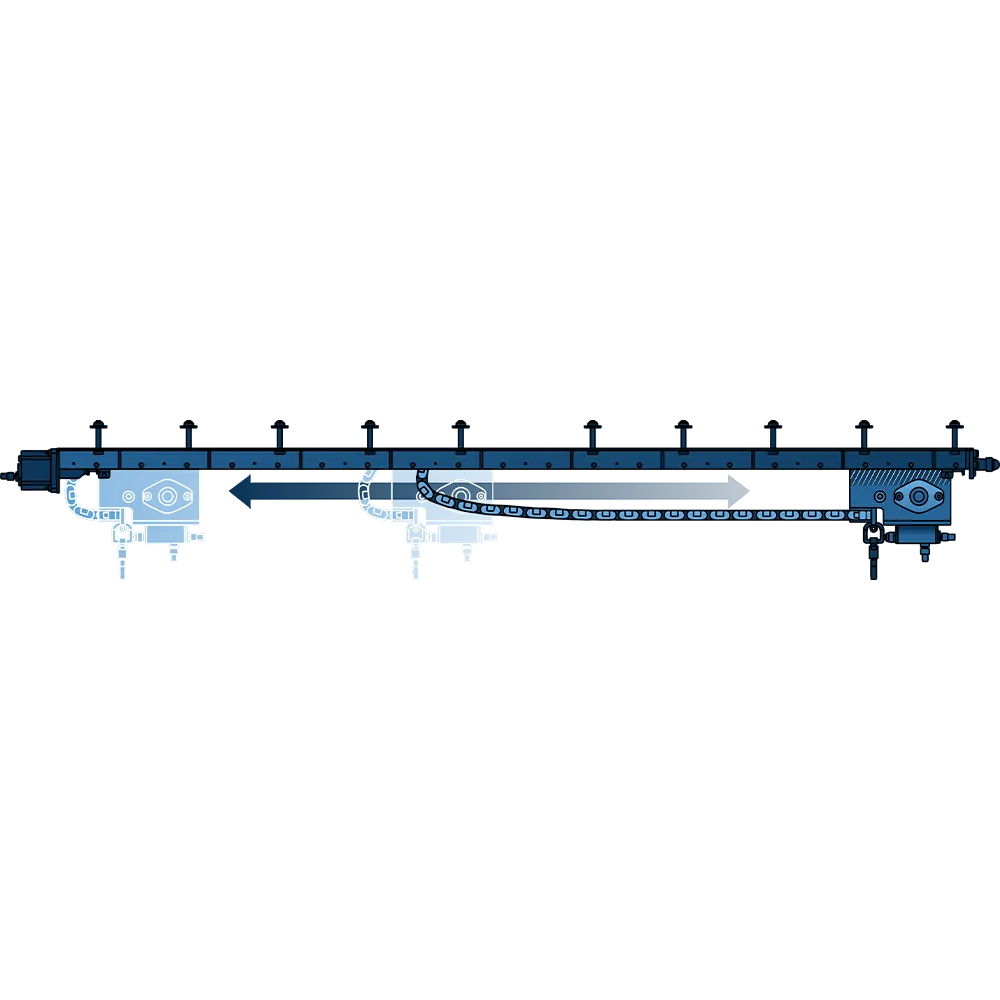

The ceiling crane's core function is vertical lifting combined with horizontal travel. The crane lifts the load vertically — clear of the garage floor and any obstacles — then travels laterally along the ceiling rail to reposition it across the garage width. Two axes of movement, one hydraulic system.
In a typical yacht garage layout, this means the tender can be lifted, moved to one side, and set down on its cradle while the jet ski is launched or recovered on the other side. Tasks that would otherwise require multiple crew members and careful coordination become single-operator operations.
The lifting and lateral travel are both hydraulically powered, giving the operator precise speed and position control. There are no free-swinging loads, no momentum to manage, and no manual effort required beyond operating the control panel or wireless remote.
Functional garage element or hidden behind ceiling panels — your choice.
The ceiling crane can be installed in two ways, depending on the yacht's design intent. In a visible installation, the crane structure is exposed as a functional design element — the stainless steel beam and hoist mechanism are part of the garage's visual language. In a concealed installation, the crane mechanism is hidden behind ceiling panels, emerging only when deployed.
This flexibility matters because yacht garages serve different roles on different vessels. On sport yachts and day boats where the garage is a working space, a visible crane installation is practical and appropriate. On superyachts where the garage is a design feature as much as a functional space, concealment preserves the interior aesthetic.
For the shipyard, both installation methods use the same structural mounting points and hydraulic connections. The choice between visible and concealed is an architectural decision, not a mechanical one — the crane performs identically either way.
Smooth lifting and positioning — operated by one crew member via panel or wireless remote.
The ceiling crane is hydraulically powered for both the vertical lift and the horizontal travel. Hydraulic actuation provides proportional speed control — the operator can move slowly for precise positioning or faster for routine operations, all from the same control input.
Control is via a wired panel mounted within sight of the crane's operating area, with two wireless remotes included as standard. The wireless remote allows the operator to move with the load — standing next to the jet ski while guiding it into position, rather than operating from a fixed panel at the other end of the garage.
The precision of the hydraulic control is particularly important in the confined space of a yacht garage. Clearances between the load, the crane structure, and the garage walls can be tight. The proportional hydraulic system makes it possible to work within these clearances without risk of impact or damage.
Visual overview

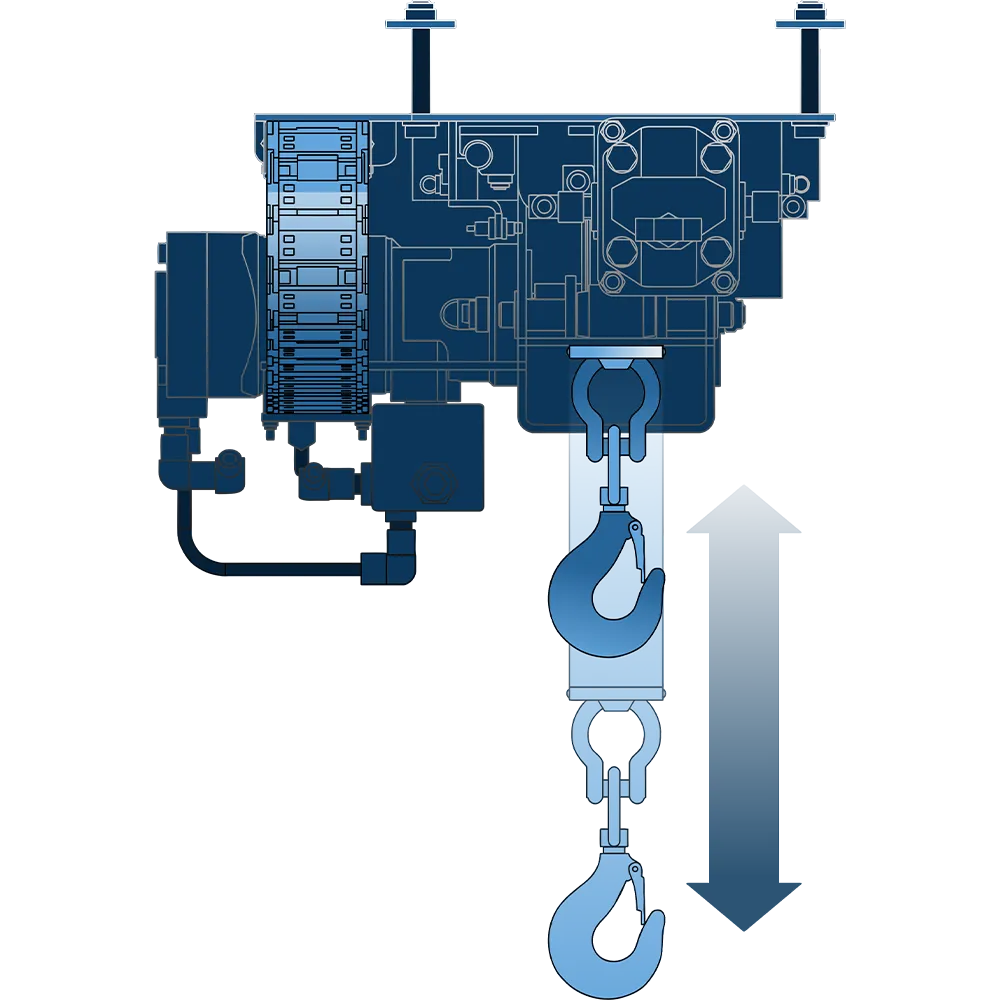

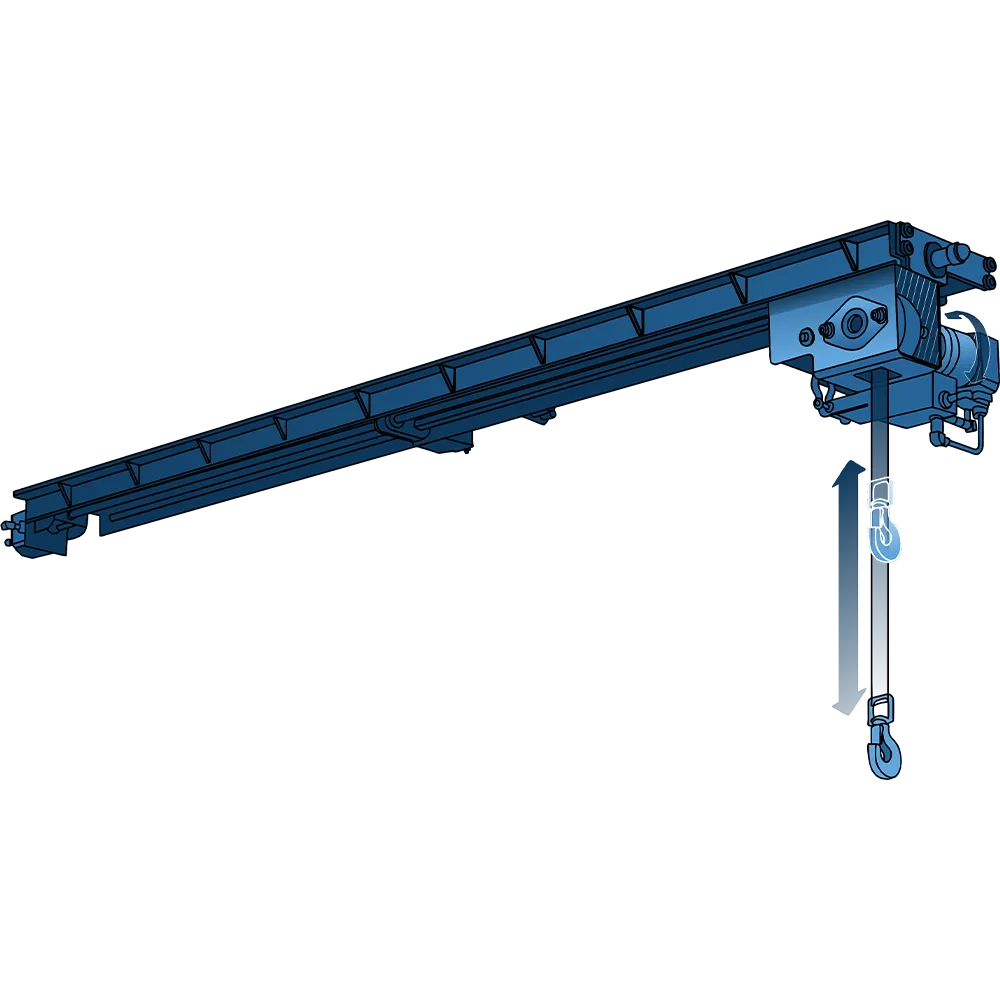

Examine the Ceiling Crane from every angle — frontal view showing the crane beam spanning the garage width, side profile with hoist in raised and lowered positions, and detail of visible and concealed installation configurations.
Technical Specifications
A hydraulic overhead crane for yacht garages. Lifts and laterally repositions tenders, jet skis, and other heavy equipment. Crane span, lifting height, and travel distance configured per project.
FUNCTION
Two-axis movement: vertical lifting and horizontal lateral travel. Lifts load clear of garage floor and repositions it side-to-side along the ceiling rail.
MATERIAL
Structural components manufactured from corrosion-resistant stainless steel. Suitable for permanent use in marine environments.
HYDRAULICS
Hydraulically powered lift and lateral travel. Proportional speed control for precise positioning. Hydraulic unit pre-fitted and function-tested.
CONFIGURATION
Crane span, lifting height, horizontal travel distance, and mounting geometry specified per project based on garage dimensions and equipment handled.
"The lifts are not just functional — they match our design and standards. With H+B, it feels more like a team than a supplier relationship."
Frequently asked questions
Answers to the most common questions about the Ceiling Crane.
The Ceiling Crane is mounted to the garage ceiling and moves loads vertically and laterally along a fixed rail within the enclosed garage. The Slewing Crane is deck-mounted with a rotating tower and telescopic boom, designed for lifting equipment over the side of the vessel. They solve different handling problems on different parts of the yacht.
The crane is designed for tenders, jet skis, and similar heavy equipment stored in yacht garages. The load capacity is specified per project based on the equipment being handled.
Yes. Retrofit installation requires structural mounting points in the garage ceiling capable of carrying the crane's load plus dynamic forces. H+B technics assesses the garage structure during the engineering phase and confirms feasibility before fabrication.
The crane's vertical clearance requirement depends on the specific hoist mechanism and the maximum lift height needed. Dimensional requirements are confirmed during the engineering phase based on the garage geometry and equipment dimensions.
Yes. The hydraulic control provides smooth, proportional movement without free-swinging loads. The wireless remote allows the operator to move with the load and guide it into position from the optimal vantage point.
Need more help?
Our team is ready to answer your questions
Customization option
Tailored solutions perfectly suited to your needs. At H+B technics, we not only offer our proven products but also the opportunity to customize them according to your specific requirements. Our experienced team is ready to support you in developing and realizing bespoke products for your yacht or project, always with a strong focus on quality, innovation, and precision.
Whether it’s special dimensions, functions, or an entirely new design, we bring your vision to life. Rely on our expertise and let’s make your ideas a reality together.
Julian Arnsmann
Head of Project & Engineering
Start your project
Every Ceiling Crane is individually configured for your yacht garage. Share your garage drawings, equipment list, and stowage requirements and we support you from the first concept to the finished installation.
